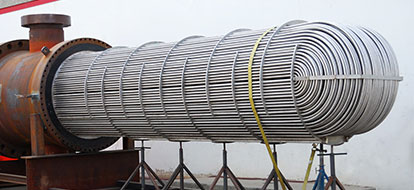

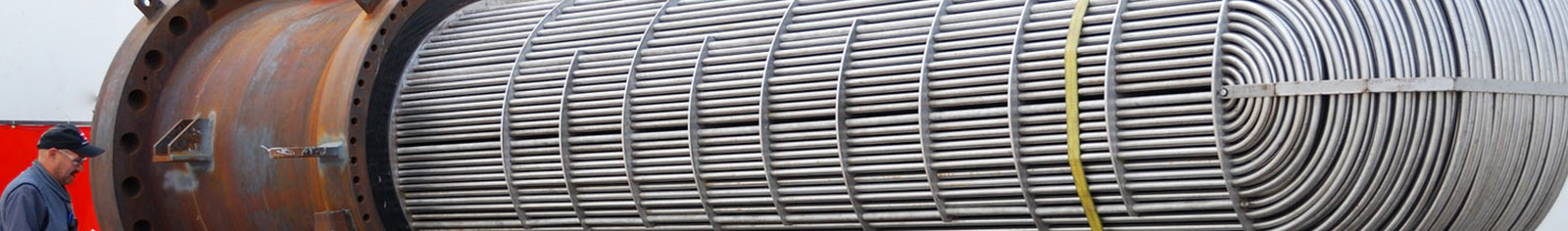

Heat Exchanger Tubes & U-Bend Tubes

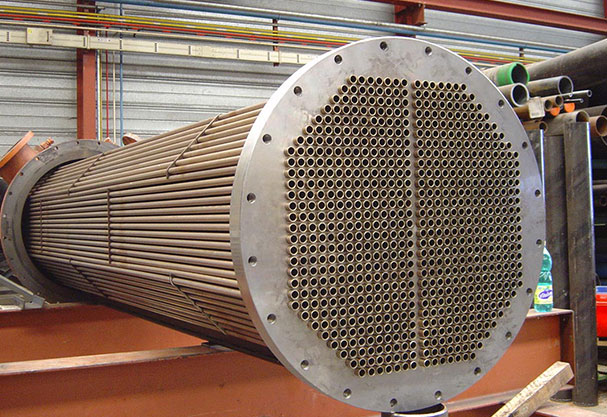

Heat Exchanger Tubes

Standards

ASME, DIN, EN, BS, NFA, JIS, GOST and others

ASTM

A 179, A 192, A 210 (Grade A1, C), A 334 (Grade 1, 6), A 209 (Grade T1, T1a), A 213 (Grade T5, T11, T12, T22), A 556 (Grade-A2- B2-C2) A 199(T5), A 268, A 269, A 312, A 376, A 789, A 790, B 338 & B 861

BS 3059

Part I (Grade 320), Part II (Grade 360, 440) BS 3602 PT-1, CFS 360,BS-980(CDS-1

DIN 17175

ST35.8, ST45.8, 15 MO3, 10CrMo44, 13CrMo910

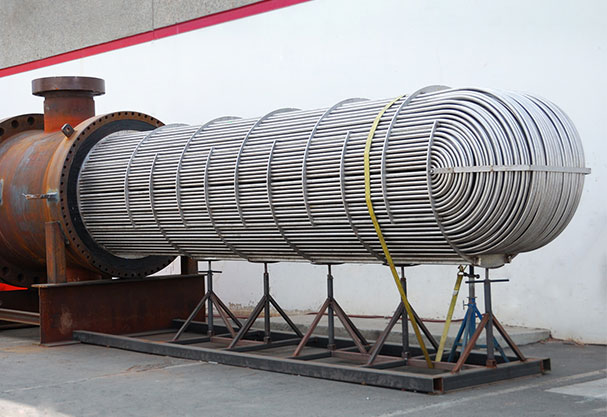

U-Bend Tubes

Standards

ASME / ASTM A213 / A688 & TEMA R 23C

9.53 mm to 50.80 mm

Thickness

0.5 mm to 3.68 mm

Leg Length

Up to 14 Meters Leg Length

Process Features

Bright Annealed / Solution Annealed – Pickled – Passivated, IN-STU Metallography Test U-Bend 1.25 DUpto 1000 mm, Full Length Stress Relieving (SR) & DP After U-Bending

Surface Finish

Bright / Pickled / Polished (ID & OD)
